Billet Cutting
Machine Use:
Machine: Extrusion Plan

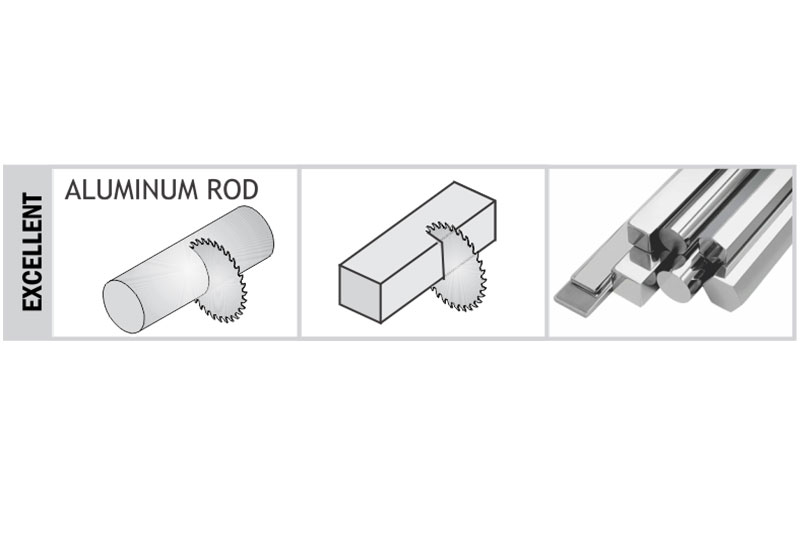

Application: Billet Cutting
Advantages: Convenient, Effective, Safe, etc.
Note: Accept Customize size
Technical Specification
| Code | Dia x Teeth | Thick | Hole | Heavy Duty Quality Price | Premium Quality Code | Premium Quality Price |
|---|---|---|---|---|---|---|
| GB12-1 | 12″ X48T | 3.2 | 1″ | 2500 | GB12-1V | 3000 |
| GB16-1 | 16″ X60T | 4.0 | 1″ | 5812 | GB16-1V | 7606 |
| GB16-2 | 16″ X72T | 4.0 | 1″ | 6172 | GB16-2V | 7850 |
| GB18-1 | 18″ X54T | 4.0 | 1″ | 5741 | GB18-1 V | 7811 |
| GB18-1A | 18″ X60T | 4.0 | 1″ | 6154 | GB18-1AV | 7500 |
| GB18-2 | 18″ X72T | 4.0 | 1″ | 7166 | GB18-2V | 9000 |
| GB20-1A | 20″ X60T | 4.0 | 1″ | 7077 | GB20-1AV | 9354 |
| GB20-1 | 20″ X72T | 4.0 | 1″ | 7431 | GB20-1V | 10163 |
| GB22-1 | 22″ X72T | 4.0 | 1″ | 9687 | GB22-1V | 12418 |
| GB24-1 | 24″ X72T | 4.0 | 1″ | 9952 | GB24-1V | 12684 |
| GB26-1 | 26″ X72T | 4.0 | 1″ | 12607 | GB26-1V | 15027 |
| GB26-2 | 26″ X72T | 5.0 | 1″ | 13623 | GB26-2V | 16355 |
| GB28-1 | 28″ X72T | 4.0 | 1″ | 14582 | GB28-1V | 15526 |
| GB28-2 | 28″ X72T | 5.0 | 1″ | 15216 | GB28-2V | 17847 |
| GB28-3 | 28″ X90T | 5.0 | 1″ | 16349 | GB28-3V | 19971 |

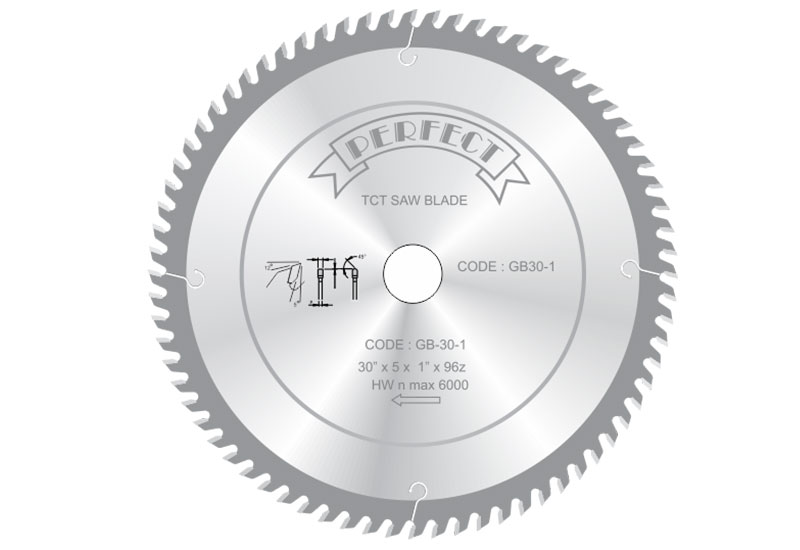

| GB30-1 | 30″ X96T | 5.0 | 1″ | 21232 | GB30 – 1V | 25096 |
