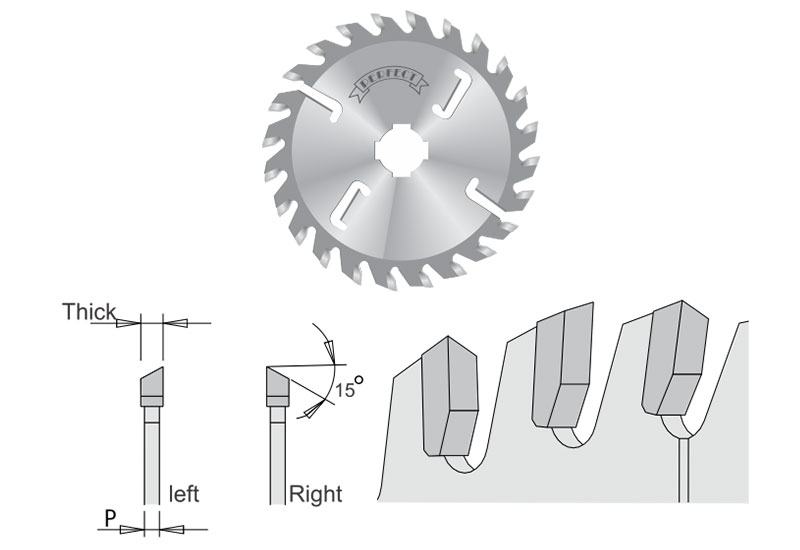

Rip Saw Blade(Rakers)-GPR
Machine Use:

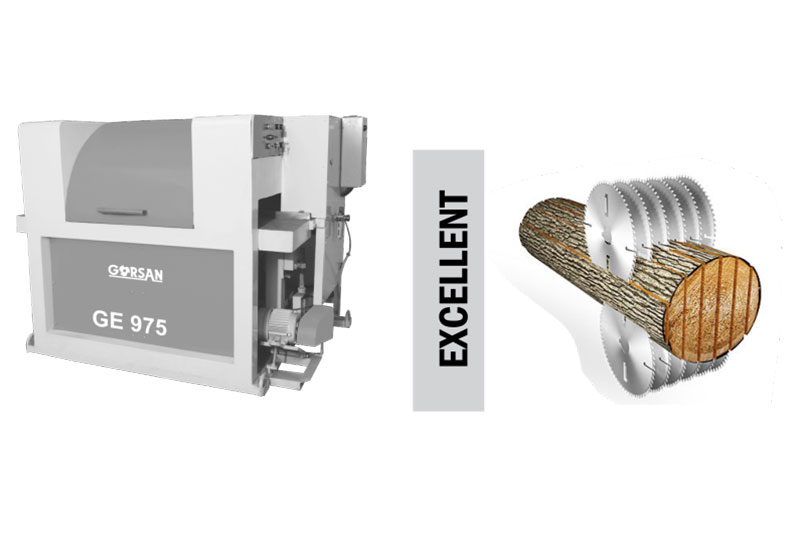

Machine: Multiple Ripsaw Machines
Application: Solid Wood
Advantages: Convenient, Effective, Safe, etc
Technical Specification
| code | Dia mm | Thick mm | Bore mm | Teeth | Key Way | Price |
|---|---|---|---|---|---|---|
| GPR – 08301 | 200 | 2.5 | 25.4 | 30 + 2 + 2 | * | 3385 |
| GPR 102030 | 250 | 3.2 | 30 | 20 + 2 + 2 | 2KW 10X4 | 4154 |
| GPR – 102060 | 250 | 3.2 | 60 | 20 + 2 + 2 | 4KW 21X5 | 4154 |
| GPR – 102070 | 250 | 3.2 | 70 | 20 + 2 + 2 | 4KW 21X5 | 4154 |
| GPR – 102080 | 250 | 3.2 | 80 | 20 + 2 + 2 | 2KW 13X5 + 2KW 21X5 | 4154 |
| GPR 122430 | 300 | 3.2 | 30 | 24 + 2 + 2 | 2KW 10X4 | 4616 |
| GPR – 122460 | 300 | 3.2 | 60 | 24 + 2 + 2 | 4KW 21X5 | 4616 |
| GPR 122470 | 300 | 3.2 | 70 | 24 + 2 + 2 | 4KW 21X5 | 4616 |
| GPR 122480 | 300 | 3.2 | 80 | 24 + 2 + 2 | 2KW 13X5 + 2KW 21X5 | 4616 |
| GPR 142830 | 350 | 3.5 | 30 | 28 + 2 + 4 | 2KW 10X4 | 6001 |
| GPR 142860 | 350 | 3.5 | 60 | 28 + 2 + 4 | 4KW 21X5 | 6001 |
| GPR 142870 | 350 | 3.5 | 70 | 28 + 2 + 4 | 4KW 21X5 | 6001 |
| GPR – 142880 | 350 | 3.5 | 80 | 28 + 2 + 4 | 2KW 13X5 + 2KW 21X5 | 6001 |
| GPR 162830 | 400 | 4 | 30 | 28 + 2 + 4 | – | 8001 |
| GPR – 162870 | 400 | 4 | 70 | 28 + 2 + 4 | 4KW 21X5 | 8001 |
| GPR -162880 | 400 | 4 | 80 | 28 + 2 + 4 | 2KW 13X5 + 2KW 21X5 | 8001 |
