Application: Perfect radius with trim in all materials, but ideal on solid wood.
Machine: Spindle moulder machines & shaper machines.

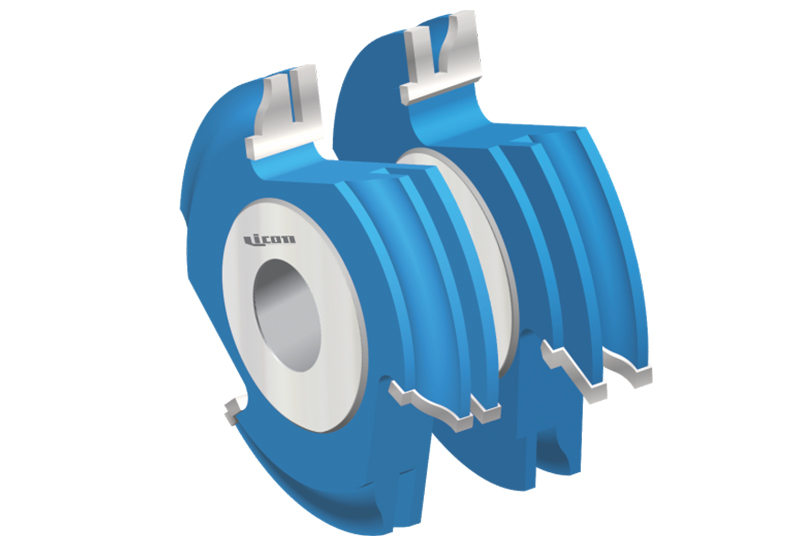

Technical Details: Hard alloy body with Tungsten Carbide & CNC precision Turn Mill, Brazed & Grinding

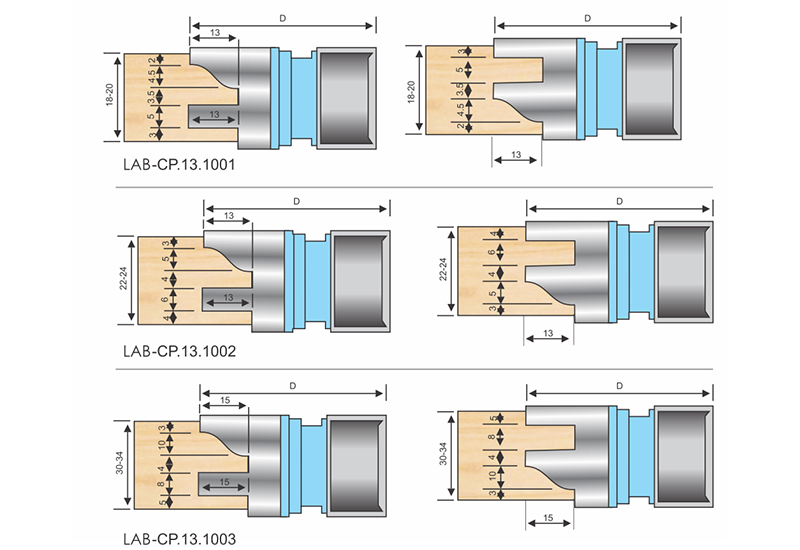

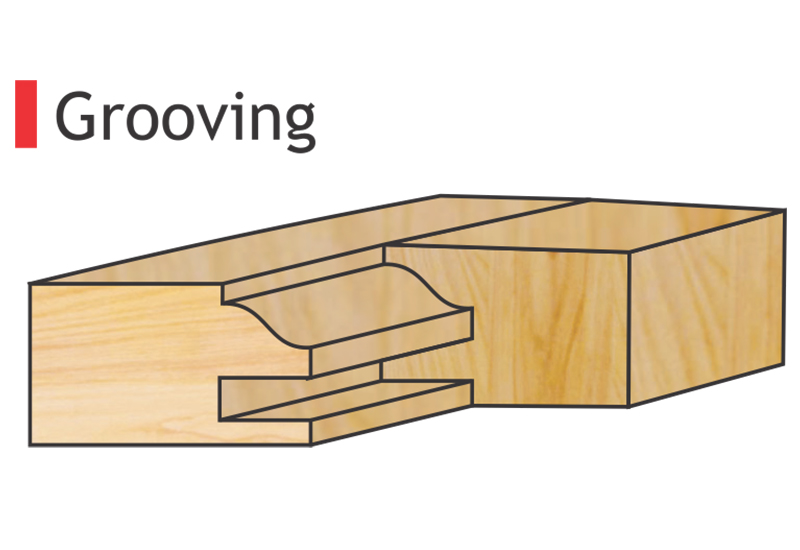

GROOVING
|
Code no.
|
Dia(mm)
|
Bore (mm)
|
Wood Thick (mm)
|
Teeth
|
Price
|
|---|
|
|
|
|
|
|
|
|---|---|---|---|---|---|
| LAB.CP.13.1001-Z3 | 125 | 30/35 | 18-20 | 3 | 12309 |
| LAB.CP.13.1002-Z3 | 125 | 30/35 | 22-24 | 3 | 12309 |
| LAB.CP.13.1003-Z3 | 125 | 30/35 | 30-34 | 3 | 14617 |
|
Code no.
|
Dia(mm)
|
Bore (mm)
|
Wood Thick (mm)
|
Teeth
|
Price
|
|---|
|
|
|
|
|
|
|
|---|---|---|---|---|---|
| LAB.CP.13.1001-Z4 | 125 | 30/35 | 18-20 | 4 | 14360 |
| LAB.CP.13.1002-Z4 | 125 | 30/35 | 22-24 | 4 | 14360 |
| LAB.CP.13.1003-Z4 | 125 | 30/35 | 30-34 | 4 | 17053 |

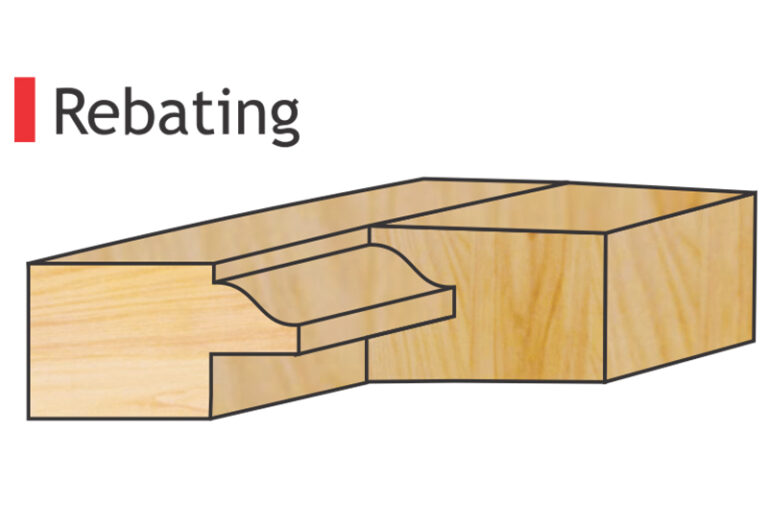

REBATING
|
Code no.
|
Dia(mm)
|
Bore (mm)
|
Wood Thick (mm)
|
Teeth
|
Price
|
|---|
|
|
|
|
|
|
|
|---|---|---|---|---|---|
| LAB.CP.13.1002R-Z3 | 125 | 30/35 | 22-24 | 3 | 12309 |
| LAB.CP.13.1003R-Z3 | 125 | 30/35 | 30-34 | 3 | 14617 |
|
Code no.
|
Dia(mm)
|
Bore (mm)
|
Wood Thick (mm)
|
Teeth
|
Price
|
|---|
|
|
|
|
|
|
|
|---|---|---|---|---|---|
| LAB.CP.13.1002R-Z3 | 125 | 30/35 | 22-24 | 3 | 12309 |
| LAB.CP.13.1003R-Z3 | 125 | 30/35 | 30-34 | 3 | 14617 |
|
Code no.
|
Dia(mm)
|
Bore (mm)
|
Wood Thick (mm)
|
Teeth
|
Price
|
|---|
|
|
|
|
|
|
|
|---|---|---|---|---|---|
| LAB.CP.13.1002R-Z4 | 125 | 30/35 | 22-24 | 4 | 14360 |
| LAB.CP.13.1003R-Z4 | 125 | 30/35 | 30-34 | 4 | 17053 |
